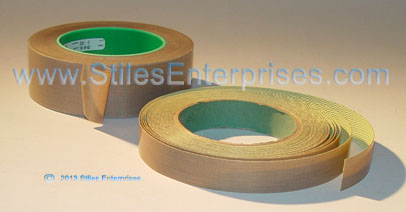

| Standard Industrial Grade PTFE / Glass Tape |
 |
- Made from Industrial Series Of PTFE / Fiberglass Fabric
- excellent balance between heat transfer, release, and flexibility
- woven fiberglass substrates, possess an optimal PTFE content
- minimal fabric impression
|
- Broad range of industrial and general-purpose applications
- Poly bag manufacturing
- Impulse/L-Bar sealing
- Form fill and seal
- Over wrapping (Tray packing)
- Side and End sealing
- Blister tray covers
- Vacuum pack machines
|
| Anti-Static & Thermal Conductive Tape |
 |
- specially formulated to dissipate surface static build-up during operation
- Black
- highest thermal conductivity (best heat transfer)
|
- applications where surface static dissipation is desired
|
| Maximum Wear Tapes |
 |
- maximize application life in the most demanding environments
- excellent release and resistant to oils, grease and chemicals
- either extremely smooth surface for maximum release or textured finish for mechanical release
|
- textured surface provides a mechanical bond or seal, which is desired in many heat-sealing applications
- more abrasion resistant and maintain low coefficient of friction after prolonged service
- excellent for use in the most challenging applications: PVC window welding, food processing, IV Bags sealing, Mylar Balloons sealing, rubber extruding, flexible packaging
|
| Zone Tapes |
 |
- Zone Tapes have an adhesive on the edges of one side
- minimal fabric impression, and have a proprietary adhesive system
- absence of adhesive in the center zone allows for faster heat transfer through the tape, and makes the tape an excellent choice for specific types of impulse sealing applications
|
- manufacture of plastic bags. Impulse sealing wires and ribbons are free to expand and contract without being encumbered by adhesive, helping to extend their working life
|
| Silicone Sponge Tapes |
 |
- Acrylic adhesive to a high-temperature, Silicone Coated Fiberglass
- highly compressible, flexible and conformable
|
- easy to apply and are excellent for use as gaskets, heat-sealing pads, cushions and thermal insulators.
- Packaging: Sealing pads Reynolds overwrap sealing
applications
- High temperature gaskets
- Vibration dampening
- Thermal insulation material
- Cushioning tape
|
| Skived PTFE Film Tapes |
 |
- most conformable and have the highest elongation
- skived PTFE film With silicone adhesive
- Acrylic adhesive is Special Order
- excellent for use in applications where stretch or conformity Are Required
- exceptional electrical properties
|
- best chemical, fire and weathering resistance Of Tapes We Offer
- wire and cable insulation and protection
- Food Processing: Work surface covering, Tray liners
- Heat sealing bars and jaws
- Non-stick roll coverings
|
| Extruded PTFE Tapes |
 |
- toughest and strongest pure PTFE tapes
- extruded PTFE film With silicone adhesive
- Acrylic adhesive is Special Order
- exceptionally high dielectric and tensile strengths, and low elongation
|
- best chemical, fire and weathering resistance Of Tapes We Offer
- Commonly used for roll protection in high speed, high temperature flat die extrusion applications
- commonly used to insulate coils and transformers
- Guide rails
- Non-stick roll coverings
- Angle bars-graphic arts industry
|
| UHMW-PE Tape |
 |
- Produced from ultra-high molecular weight polyethylene
- rubber adhesive
- Acrylic adhesive is Special Order
- natural (opaque) in color
- Excellent anti-stick, reduced friction and noise-reduction properties
- excellent for applications involving surface wear
|
- chute linings, guide rail, Conveyor side liners
- Conveyor belt anti-friction surface,Wear plates and wear strips
- Food and Beverage: Anti-stick surface for dough making
- Chutes, pans for cereal
manufacturing
- Tabletop surface liners
- Hopper liners, Bottling line dump table liners
- Release surface for sticky foods,
candies
- Skid surface for milk cartons
- Can and bottle filling line surface
protection
|
| Fiberglass Cloth Tapes |
 |
- tightly woven, high tensile fiberglass cloth coated with high-temperature silicone or acrylic adhesive
- high thermal rating, are flame retardant, abrasion and edge-tear resistant, conformable, and provide superior solvent resistance
- excellent choice for electrical and mechanical applications where chemical resistance properties of PTFE are not required
|
- Electrical Coil, component, and cable wrapping
- Motor lead and internal connections
- Insulating coil connections and coil ends
- Anchoring terminal boards
- Coil outer wraps
- Holding coil leads
- Cable harness wrapping
- Economical thermal spray tape
- Sealing and enclosing hermetically
-packaged components
|
| Silicone Coated Fiberglass Tapes |
 |
- tightly woven high tensile glass cloth that is coated with silicone rubber
- tough and abrasion resistant to withstand the high temperatures and grit-blasting impact associated with plasma metallization treatments
- superior mechanical and thermal protection for HVOF applications
|
- Lagging rollers
- Masking tape for ceramic and metal
plasma flame spraying
- Grit Blasting
- HVOF (High Velocity Oxy-Fuel)
- Arc Spraying
|
| Polyimide (Kapton®) Tape |
 |
- wide temperature range and used in field applications where the environmental temperatures as low as -269°
- thin, strong film which has excellent dielectric strength, chemical and moisture resistance, excellent tensile strength and modulus and weathering capabilities
|
- ideal for electrical uses
- Splicing tapes on insulated wire
- Mask off gold fingers for circuit board
printing, wave soldering and
cable bundling
- Transformer and capacitor insulation
|
Stiles works with the best innovators of PTFE, and silicone coated fabrics to provide supported and unsupported material primarily for food and packaging applications.
