Hamid Machine Tapes
The design of the Hamid machine tapes allows them to be joined quickly by fusing the ends together without the use of adhesives. This results in a superior product with uniform flexibility over the whole length. In addition, it provides significant cost savings in terms of maintenance and reduced downtimes.

New to the Habasit® Hamid Machine Tapes is MVM-5E Hamid Tape. Literature is available by clicking the MVM-5E Literature on the right side of the Belt List Header Bar Below. Specifications can be reviewed by clicking on the MVM-5E Picture in the table.

Elastic Hamid machine tapes are also available.

Main features:
Simple and fast adhesive-free joining method Uniform longitudinal flexibility (thanks to the adhesive-free joint) • Low energy consumption, due to high longitudinal flexibility • Excellent reversed bending and flex fatigue properties Copes with small pulley diameters • Good dimensional stability, low sensitivity to humidity • High abrasion resistance • Application-oriented surface properties, gentle treatment of transported goods • Elastic types are available
Warranties Hamid Machine Tapes / Belts MVM-5E Machine Tape Literature
Call Stiles For Vacuum Cups
  Thick Pulley Dia. (min.) Tensile force for elongation Static Per Width Unit Conveying Side (1) Traction layer (2) Running Side/Pulley Side (3)
Code Click Pic For Detail  mm  mm N/mm % Elong. Material Surface Property Color Material Material Surface Property
MAM-04H MAM-04H 1.45 15 2.6 8% Acrylonitrile-Butadiene-Rubber (NBR) Fine  Adhesive: Elastic Green Hamid Acrylonitrile-Butadiene-Rubber (NBR) Rough Adhesive
MAM-05HP MAM-05HP 1.6 15 3.2 8% Acrylonitrile-Butadiene-Rubber (NBR) Fine  Adhesive: Elastic Green (Habasit green) Hamid Acrylonitrile-Butadiene-Rubber (NBR) Rough Textile  Adhesive
MAM-5E MAM-5E 1.4 25 5 1% Acrylonitrile-Butadiene-Rubber (NBR) Fine  Adhesive Green Polyester (PET) fabric Acrylonitrile-Butadiene-Rubber (NBR) Fine  Adhesive
MAM-5P MAM-5P 1.2 20 4.6 1% Acrylonitrile-Butadiene-Rubber (NBR) Fine  Adhesive Green Polyamide (PA) Hamid Smooth Non-adhesive
MAM-8P MAM-8P 1.8 40 6.5 1% Acrylonitrile-Butadiene-Rubber (NBR) Fine  Adhesive Green Polyamide (PA) fabric / Hamid foil Hamid Smooth Non-adhesive
MAN-05H MAN-05H 1.9 20 5 8% Polyester (PET) fleece Non-woven (fleece) Adhesive: Elastic Anthracite Hamid Acrylonitrile-Butadiene-Rubber (NBR) Rough Textile  Adhesive
MAT-02H MAT-02H 1.4 15 0.9 8% Acrylonitrile-Butadiene-Rubber (NBR) Rough  Adhesive: Elastic Green Hamid Acrylonitrile-Butadiene-Rubber (NBR) Rough  Adhesive
MAT-5P MAT-5P Machine Tape 1.5 15 4.4 1% Rubber (EPDM) Rough  Adhesive Green Polyamide (PA) Hamid Smooth Non-adhesive
MNI-10E MNI-10E 1.8 30 13 1% Polyamide (PA) fabric Impreg. Fabric Non-adhesive Gray Polyester (PET) fabric Polyester (PET) fabric Impreg. Fabric Non-adhesive
MNI-7E MNI-7E 1.2 25 13 1% Polyamide (PA) fabric Impreg. Fabric Non-adhesive Black Polyester (PET) fabric Polyester (PET) fabric Impreg. Fabric Non-adhesive
MNT-5P MNT-5P 1 20 5 1% Polyurethane cross-linked (PUR) Impreg. Fabric Non-adhesive Black Polyamide (PA) fabric /Thermoplastic polyurethane (TPU) foil Polyurethane cross-linked (PUR) Impreg. Fabric Non-adhesive

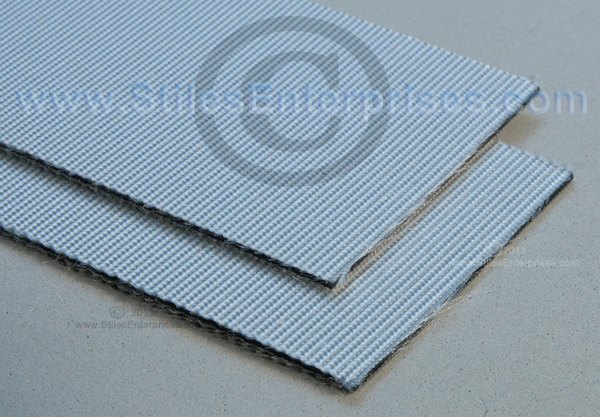

MNT-8P MNT-8P 1.8 25 9 1% Polyamide (PA) fabric Fabric Non-adhesive Light gray Polyamide (PA) fabric / Hamid foil Polyamide (PA) fabric Fabric Non-adhesive

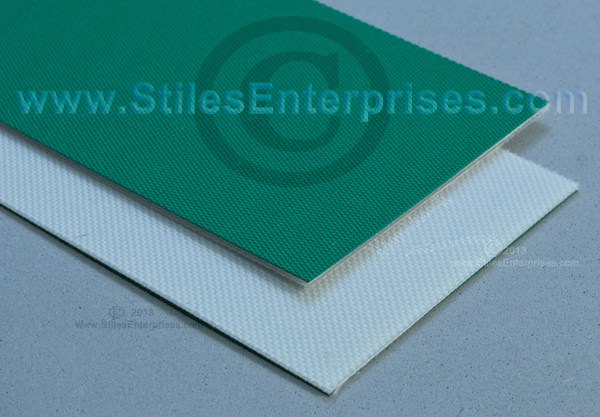

MVT-5E MVT-5E 1.3 20 6 1% Acrylonitrile-Butadiene-Rubber (NBR) Rough Textile  Adhesive Green Polyester (PET) fabric Polyester (PET) fabric Impreg. Fabric Non-adhesive

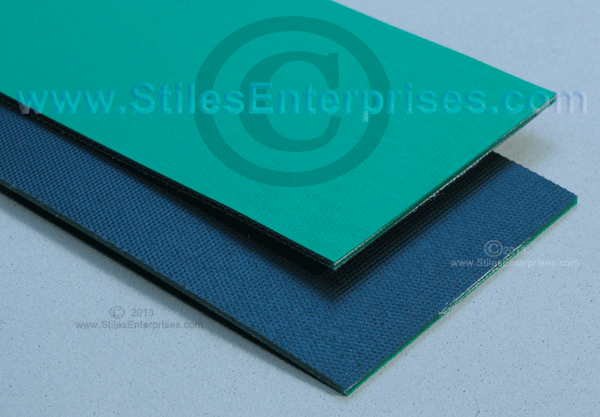

MVT-6P MVT-6P 1.45 25 4.8 1% Polyurethane cross-linked (PUR) Impreg. Fabric Non-adhesive Black Polyamide (PA) fabric /Thermoplastic polyurethane (TPU) foil Acrylonitrile-Butadiene-Rubber (NBR) Fine Textile  Adhesive


For Additional Information And Delivery Information Call Our Office


.
