Bottle Capper Chuck Insert Strips

Stiles molds or fabricates strips to fit varied capper chucks. Strips are provided that the customer can cut to size, or precut inserts to specification can be ordered.

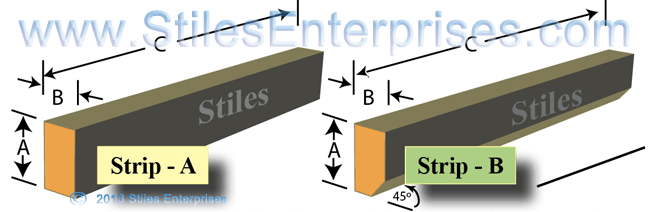

Bottle Capper Chuck Strip Drawings



Common Replacements

Stiles Number

Number To Be Replaced

Notes
AB-00265-AJI
9134C
 Part Is Supplied As Strip For Customer To Cut To Size
AB-00270-AJI
9134CA
 Part Is Supplied As Strip For Customer To Cut To Size



 We Stock More Capper Chuck Inserts And Torque Wheels Than Anyone

Torque Wheels • Chuck Inserts • Capper Belts • Bottle Gripper Rubbers • Table Top Chain • Rubbers To Fit Resina® Side Chain

Drawing Strip B

AB-00265-AJI

  • 14.5"Long x 0.328" Wide x 0.125" Thick
  • Urethane 80A
 AB-00265-AJI Capper Chuck Insert Strip

Drawing Strip B

AB-00270-AJI

  • 14.5" Long x 0.2188" Wide x 0.125" Thick
  • Urethane Tan 80A
 AB-00270-AJI Chuck Insert Strip

Drawing Strip B

AB-02635-AJI

  • 2.185" Long x 0.328" Wide x 0.125" Thick
  • Urethane 80A Tan
AB-02635-AJI Chuck Insert Strip

Drawing Strip A

AB-02903-AMZ

  • 12" Long x 0.276" Wide x 0.187" Thick
  • 50A
  • Natural Amber
 AB-02903-AMZ Chuck Insert Strip

Drawing Strip C

AB-10094-AJI

  • 12" Long x 0.219" Wide x 0.16" Thick
  • 80A Tan
 AB-10094-AJI Chuck Insert Strip

Drawing Strip B

AB-11497-AJI

  • 12" Long x 0.328" Wide x 0.158" Thick
  • 80A
  • Duro Tan
 AB-11497-AJI Chuck Insert Strip
