Overhead And Hand Held Capper Chuck Inserts

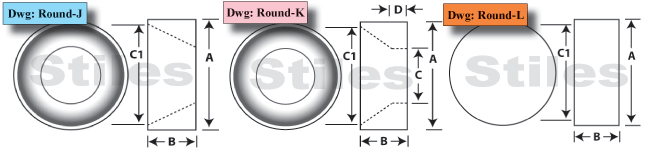

Stiles maintains a large stock of chuck inserts to fit hand held, semi-automatic, and fully automatic overhead cappers. Most applications use our standard off the shelf parts. Often customers require modifications such as solid inserts ( Dwg: Round - L ), or a modified cut out ( Dwg: Round - K ).

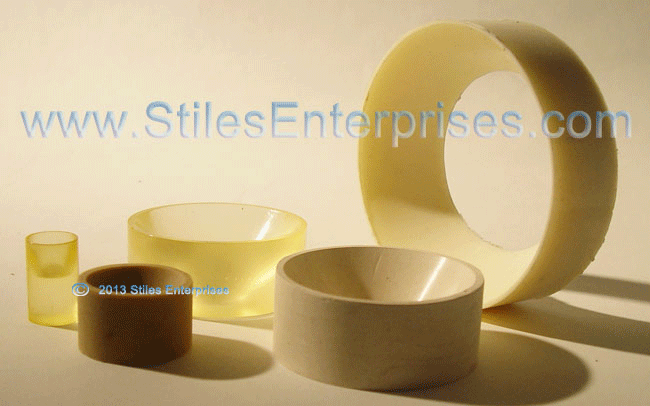

Most common are inserts molded from our white 1470 AEI material, or our 60 durometer clear BHD urethane inserts which are tougher on the cap but last longer. Softer hardnesses generally have more grip but wear faster than higher hardnesses of the same compound.

Large quantities can be custom compounded with specified colors. Check for minimum quantity requirements and additional costs.

For years we have worked with cap manufacturers, capper OEMs, and packagers formulating materials to match standard and problem caps.

Specify Part Number As the SE Part Root No listed below and The Mat'l Suffix from the Material Selection Chart above.

Example: AB-00001-AEP
