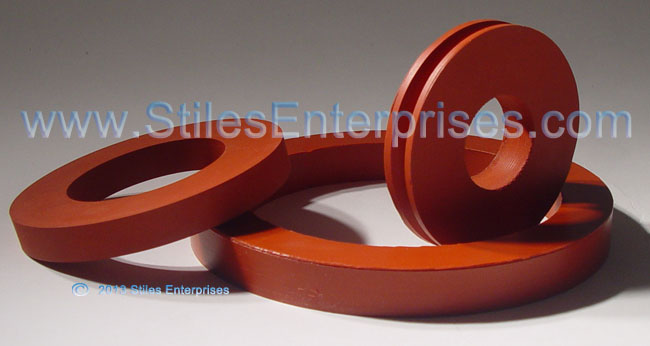

Bottle Capper Chuck Inserts To Fit Pneumatic Scale Rotary Cappers

Chuck Inserts for Pneumatic Scale® cappers are cut to customer specifications from a large variety of stock molded blanks which cover all the sizes. The standard stocked material is our 50A durometer Red AES material. 60A Durometer Red AET material is available in select sizes from stock.



Specify Part Number As the SE Part Root No listed below and The Mat'l Suffix from the Material Selection Chart below. Include the required inside diameter. Your part number will have a dash after the part number with the cut dimension.

Example: AB-00035-AES- .875


Material Chart

Material Suffix

Material

Notes

AES

50A Durometer Red

Standard Stocked Material

AET

60A Durometer Red

Check Delivery

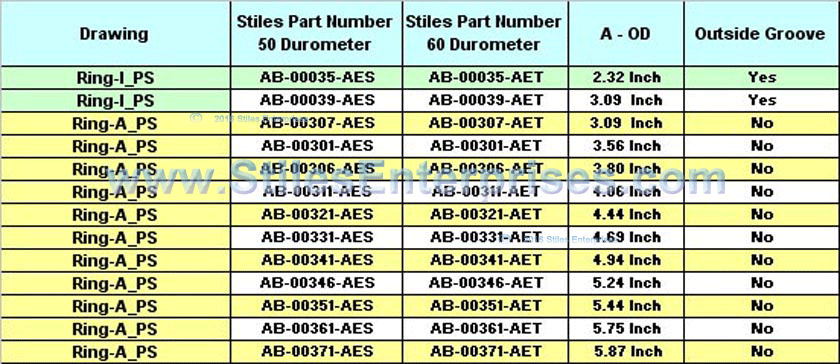

Chuck Inserts To Fit Pneumatic Scale® Cappers
Warranties
 We Stock More Capper Chuck Inserts And Torque Wheels Than Anyone
Literature
Torque Wheels • Chuck Inserts • Capper Belts • Bottle Gripper Rubbers • Table Top Chain • Rubbers To Fit Resina® Side Chain

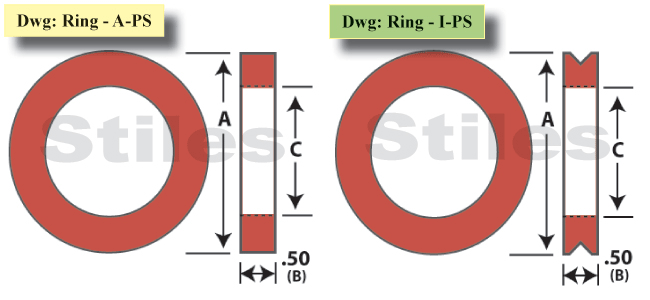

Drawing: Ring-I_PS

AB-00035-AES-B

  • 2.32" OD x Specify ID x 1/2 " Thick
  • Color: Red
  • AES: 50A Durometer
 AB-00035-AES-B Pneumatic Scale® Chuck Insert Drawing: Ring-I_PS

AB-00039-AES-B

  • 3.09" OD x Specify ID x 1/2 " Thick
  • Color: Red
  • AES: 50A Durometer
 AB-00039-AES-B Pneumatic Scale® Chuck Insert Drawing: Ring-A_PS

AB-00301-AES-B

  • 3.56" OD x Specify ID x 1/2 " Thick
  • Color: Red
  • AES: 50A Durometer
 AB-00301-AES-B Pneumatic Scale® Chuck Insert
